SR300 Spectroscopic Reflectometer &
Film Thickness Measurement System


Features:
• Easy to set up
• Easy to operate with Window based software
• Advanced optics design for best system performance
• Array based detector system to ensure fast measurement
• Uniquely designed light source for better intensity stability
• There are four ways to adjust light intensity:
  - Power output adjustment by knob from power supply
  - Insert a filter into filter slot at light output exit port
  - Beam size adjustment
  - Integration time adjustment in Detector from TFProbe software
• Measure film thickness and Refractive Index up to 5 layers
• Allow to acquire reflection, transmission and absorption spectra in milliseconds
• Capable to be used for real time or in-line thickness, refractive index monitoring
• System comes with comprehensive optical constants database and library
• Advanced TFProbe Software allows user to use either NK table, dispersion or effective media approximation (EMA) for each individual film.
• Upgradeable to MSP (Microspectrophotometer) system, SRM Mapping system, Multiple channel system, Large Spot for • direct measurement over patterned or featured structure
• Apply to many different type of substrates with different thickness
• Various accessories available for special configurations such as running measurement over the curve surface
• 2D and 3D output graphics and user friendly data management interface

System Configuration:
• Model: SR300
• Detector: CCD Array with 2048 pixels
• Light Source: High stability and long lifetime Halogen
• Light Delivery: Fiber Optics
• Stage: Black Anodized Aluminum Alloy with Easy Adjustment for sample height, 200mmx200mm size
• Software: TFProbe 2.2
• Communication: USB to Computer
• Measurement Type: Film thickness, reflection spectrum, refractive index
• Computer needed: P3 above with minimum 50 MB space
• Power: 110– 240 VAC /50-60Hz, 1.5 A
• Warranty: One year labor and parts

Specifications:
• Wavelength range: 400 to 1100 nm
• Spot Size: 500 µm to 5mm
• Sample Size: 200x200mm or 200 mm in diameter
• Substrate Size: up to 50mm thick
• Measurable thickness range*: 20 nm to 50 µm
• Measurement Time: 2 ms minimum
• Accuracy*: better than 0.5% (comparing with ellipsometry results for Thermal Oxide sample by using the same optical constants)
• Repeatability*: < 1 Ǻ (1 sigma from 50 thickness readings for 1500 Ǻ Thermal SiO2 on Si Wafer)

Options:
• Transmission Fixture for Transmission and Absorption Measurement (SR300RT)
• Micro spot for measuring small area down to 5 µm size (MSP300)
• Multiple Channel for simultaneously measurement at multiple locations (SR300xX)
• Mapping uniformity over 200 or 300 mm wafer (SRM300-200 /300)

Applications:
• Semiconductor fabrication (PR, Oxide, Nitride..)
• Liquid crystal display (ITO, PR, Cell gap…..)
• Forensics, Biological films and materials
• Inks, Mineralogy, Pigments, Toners
• Pharmaceuticals, Medial Devices
• Optical coatings, TiO2, SiO2, Ta2O5…..
• Semiconductor compounds
• Functional films in MEMS/MOEMS
• Amorphous, nano and crystalline Si

Application Examples:

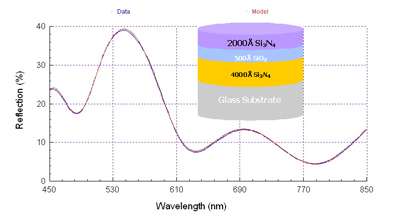

1. Measured thicknesses for three layers Nitride-Oxide-Nitride on Glass


2. Measured Thickness for thick coating

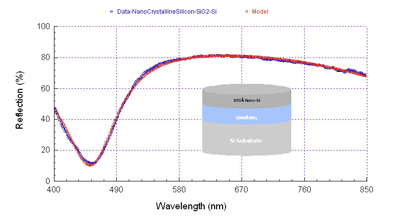

3. Measured Reflection Spectrum and Thickness for Nano-crystalline Si
